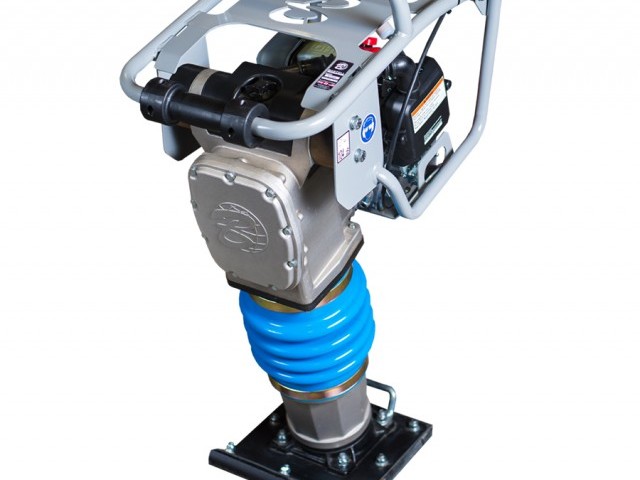

BT1400 TAMPING RAMMER

THE CONTRACTOR PROVEN RAMMER WITH MORE POWER. The BT1400 is Bartell’s standard tamping rammer that is perfect for general compaction applications. Unlike most most ‘jumping jacks’ in its category, the BT1400 is equipped with a more powerful GX120 engine to provide more compaction force and power when you need it.

Specifications

Engine Honda GX120
Power Output 3.5hp (2.6kW)
RPM 3600
Fuel Capacity 0.7 GAL (2.65L)
Starting System Recoil
Jumping Stroke 2.8" (70mm)
Compaction Force 3080lbf / 13.7kN (1400kgf)

Features and Benefits

Adjustable height operators handle for operator comfort
Honda GX120 powered with diaphragm carburetor
Heavy-duty throttle control provides longer life
Dual air filtration keeps the dirt where it belongs: out of your engine
Integrated fuel valve provided for easy starting
Heavy shock mount system to reduce hand/arm vibration and improve operator comfort
Protective roll cage prevents possible damage on job site
Integrated roller and lift handle makes loading and unloading a one person job
Transport dolly included

Dimensions

Length 28" (720mm)
Width 16" (415mm)
Height 41" (1045mm)
Weight 164lbs (74kg)
Plate Size 11" x 12" (280mm x 300mm)

Engine

Honda GX120

Weight

164lbs (74kg)
