Decorative concrete overlays give new life to structurally sound, worn existing concrete surfaces. Butterfield Color® has engineered a number of concrete overlay systems to provide the precise blend to transform blemished concrete into a fresh canvas to achieve any imagined decorative concrete look.
T1000™ Stampable Overlay is a polymer modified cementitious topping formulated for resurfacing structurally sound, non-moving concrete floors and exteriorhardscapes. The overlay provides a durable surface suitable for stamping with Butterfield Color® Stamping Tools or textured with Butterfield Color® Texture Rollers. The cured product creates an abrasion resistant surface suitable for pedestrian and automobile traffic. It is an ideal system for restoring worn or colorblemished concrete, out of level surfaces or correcting construction errors. Properly applied to clean and sound concrete, T1000™ Stampable Overlay is freeze/thaw resistant. 21-day compressive strength is 5250 psi (36.2 MPa). T1000™ Stampable Overlay is a precise blend of graded sand, cement, and polymer, which allow for thin applications. It is a pre-packaged material that is mixed on the job site with clean water and can be stamped textured or roller textured. Application thickness ranges from 1/8 inch (3 mm) to a maximum of 1/2 inch (13 mm). T1000™ Stampable Overlay is packaged in medium gray or white colors. Those base colors may be colored with a Uni-Mix® Color Pack. 24 colors are available. Refer to the Uni-Mix® Integral Colorant color chart for available colors. Colors are formulated for use with T1000™ Stampable Overlay medium gray unless noted otherwise. Custom colors and colors selected from the PermaCast® Shake-on Color Hardener color chart can be formulated with ample lead-time. Note: When T1000™ Stampable Overlay is mixed with a Uni-Mix® Color Pack, the cured color will not be an exact match to concrete colored with integral color or color hardener. T1000™ Stampable Overlay medium gray, white or colored materials may be stained by applying Elements™ Transparent Stain or Perma-Cast® Sierra Stain™. Read the Elements™ Transparent Stain or Perma-Cast® Sierra Stain™ Technical Data Sheet before installing product. All information is available for download online at www.butterfieldcolor.com and at point of purchase. Perma-Cast® Sierra Stain™ Note: A dilution rate of 3 parts water to 1 part Perma-Cast® Sierra Stain™ is recommended when using with T1000™ Stampable Overlay. 2. Limitations: T1000™ Stampable Overlay is formulated for use over thoroughly clean, structurally sound, and non-moving concrete. Surface preparation is required. New concrete must be fully cured before applying the product. Maximum applied thickness is 1/2" (13 mm) in a single application. Do not install product if ambient and substrate temperatures are not between 45°F (7°C) and 85°F (30°C), unless site conditions can be modified to correct for temperature extremes. T1000™ Stampable Overlay should not be installed in areas subject to steel wheel traffic, strong chemicals, periodic water immersion, or hydrostatic pressure. The cured overlay surface should be sealed for ease of cleaning, particularly on interior floors. Extend existing substrate control joints up through the overlay to minimize random cracks in the overlay. Random cracks in the existing substrate may transfer through the cured overlay even if they are repaired prior to application. 3. Packaging: T1000™ Stampable Overlay is available in 55 lb. (25 kg) bags. UniMix® Color Pack weights vary from 0.5 lb.- 1.25 lb. (0.23 kg-0.57 kg), depending on the color selected. Colors are formulated for use with T1000™ Stampable Overlay medium gray unless noted otherwise. 3.1 SHELF LIFE: 2 years in original, unopened containers, in dry storage. 4.
Coverage: The coverage rates of one 55
lb. (25 kg) unit of T1000™ Stampable Overlay are approximately: 24 sq. ft. at
1/4" thick (2.2 m² at 6 mm thick) 16 sq. ft. at 3/8" thick (1.5 m² at
9 mm thick) 12 sq. ft. at 1/2" thick (1.1 m² at 13 mm thick

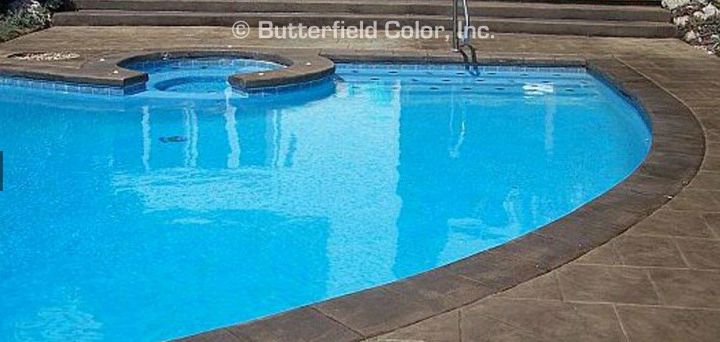

Stampable overlays can bring life back to weathered concrete surfaces and pool decks. The same color charts and release textures and colors can be used on an overlay as a conventionally stamped hardscape.
Specifications
http://www.butterfieldcolor.com/tech-docs.php
Features and Benefits

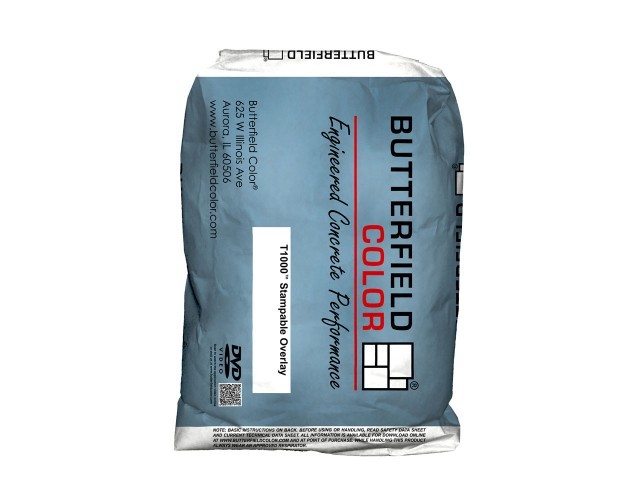

Packaged in 55-pound (25 kg) bags. Each bag, when properly mixed with water, provides for approximately 24 SF at 1/4” thick (2.2m² at 6 mm thick).
A polymer modified, cementitious material designed for resurfacing and texturing stable, non-moving concrete floors and hardscapes.
Single application thickness can range from 1/8" (3mm) to a maximum of 1/2" (13mm), depending on thickness desired.
Use with T1000® Primer to provide enhanced adhesion and workability of the material.
Wide range of Uni-Mix® Color Packs available. Available in Cement Gray and Cement White
