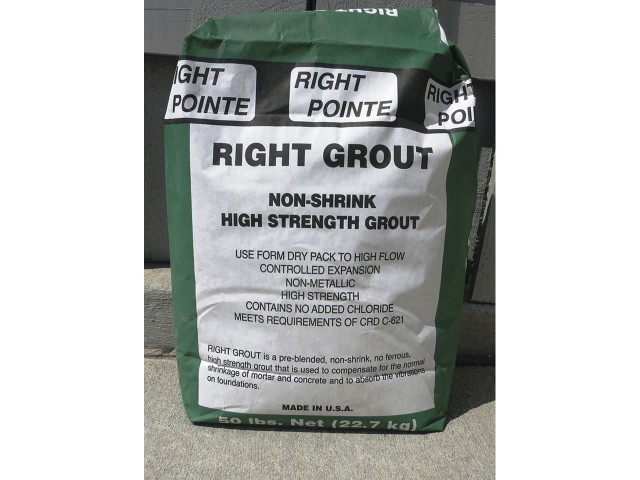

RIGHT GROUT SUPREME

RIGHT GROUT SUPREME

RIGHT GROUT SUPREME is a pre-blended, non-shrink, non-ferrous, high strength grout which can be used from dry pack to Flowable consistencies and to compensate for the normal shrinkage of mortar and concrete and to absorb the vibrations on foundations. CRD-C588-78, CRD-C266, CRD-C621-81, CRD-C614-80, CRD-C277, ASTM-C190, ASTM-C348 WORKING PROPERTIES / TECHNICAL DATA (APPROXIMATE) Initial Set per CRD-C81 70 minutes at 70_ F (21_ C.) Final Set per CRD-C82 120 minutes at 70_ F (21_ C.) Complies with ASTM C-1107 Grade B, ASTM C-109, ASTM C-348, CRD-C588, CRD C621, CRD C226, CRD C266, ASTM C588, AASHTO T-161B. Compressive Strength CRD-227 Plastic Pourable Flowable 1 Day 5240 psi 4980 psi 4810 psi 36.68 mpa 34.86 mpa 33.67 mpa 3 Days 8360 psi 7030 psi 7440 psi 58.52 mpa 49.21 mpa 52.08 mpa 7 Days 8710 psi 8450 psi 8270 psi 65.38 mpa 60.97 mpa 57.89 mpa 28 Days 11290 psi 11060 psi 10820 psi 79.03 mpa 77.42 mpa 75.74 mpa Plastic Consistency Tensile Strength ASTM C190 Flexural Strength ASTM C348 7 Days 530 psi 1470 psi 3.71 mpa 10.29 mpa Pull out test #9 rebar @60,000 lbs for 1 minute 12" depth: 18" depth: Controlled Expansion CRD-621 24 Hours Pass Pass +0.02% 7 Days Pass Pass +0.02% 14 Days Pass Pass +0.03% Total Chloride Ion Content PPM Cl- lbs/yd3 110 0.4

Features and Benefits

Dimensions

Color
